Mizar 6 Mono underwater LED fountain light
- IP68 underwater LED fountain light up to 5 m of depth, certified
- Made of AISI 316 L stainless steel, 3-8 mm thick
- 12 VDC / 12 VAC – 7 W max power
- Interchangeable MR16 – GU5,3 monochrome LED lamp
- Onboard LED driver – No external driver
- 10 m of H07RN-F submersible cable
- Fast IP68 underwater junction upon request
- Demountable and accessible in every part
Description

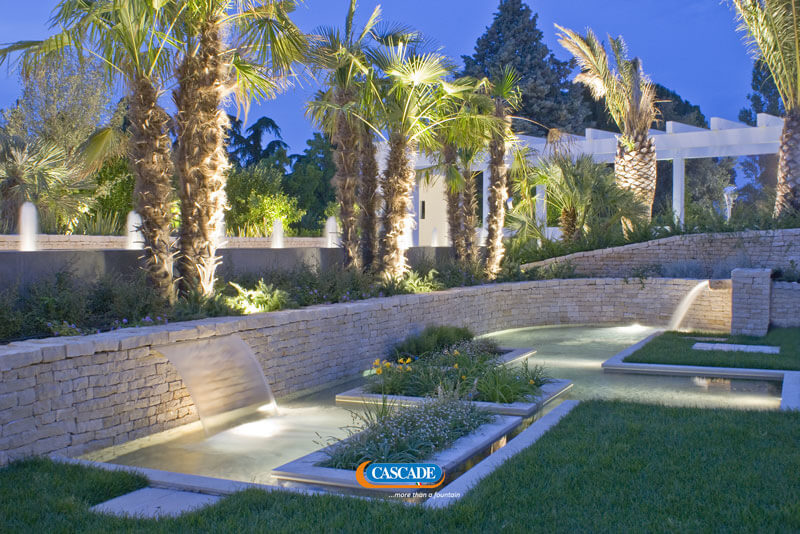

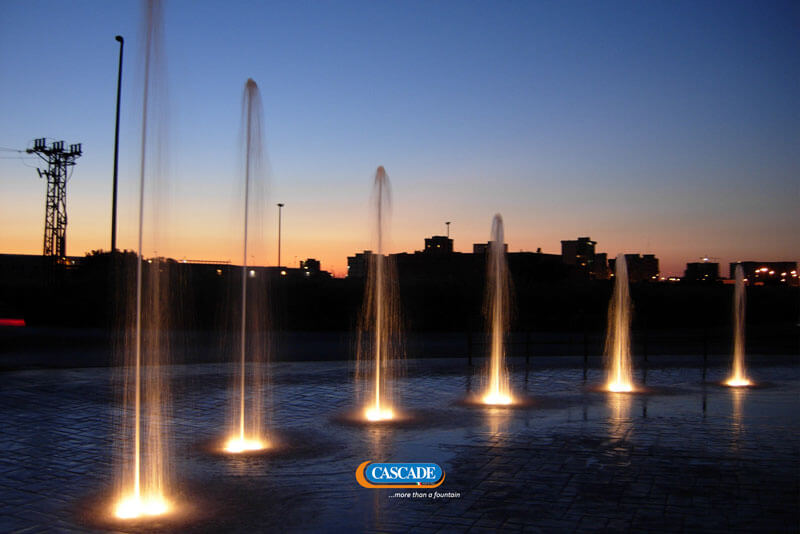

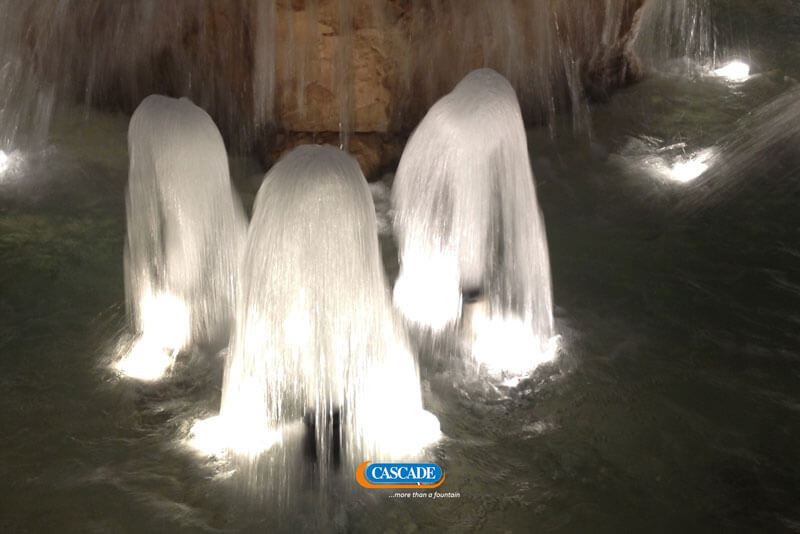

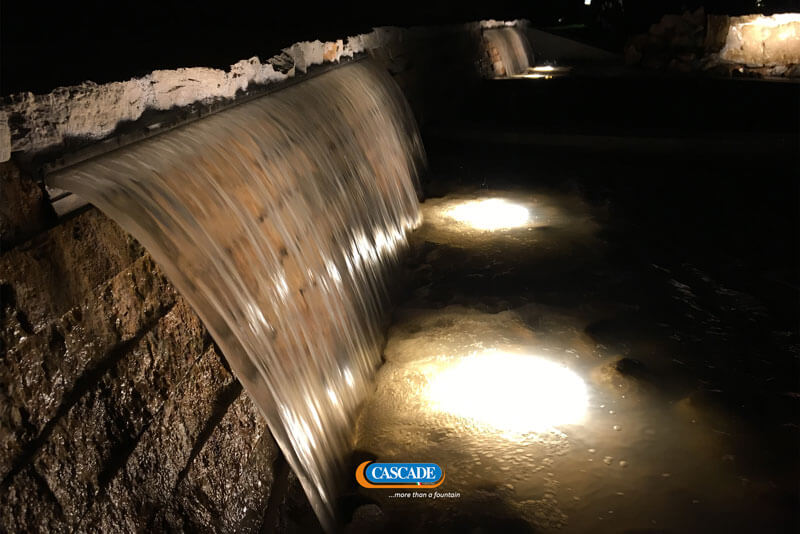

The underwater LED fountain light Mizar 6 Mono has been studied and designed specifically for fountain and water effects illumination and it is available in the mochrome version.
Entirely made of AISI 316 L stainless steel with high mechanical features, stainless steel screws, silicone rubber gaskets, stainless steel gland and stainless steel support (for its wall or floor anchorage in the orientable version).
The LED lamp used is an MR16 with GU5,3 connection and monochrome, available in different colours, easily interchangeable in case of need.
It can be built-in using the stainless steel or PVC recess.
In the standard version, the underwater LED light Mizar 6 Mono is complete with 10 m of a two-conductor H07RN-F 2×1 mm² cable suitable to be used underwater. Upon request, it can be supplied with different cable length or with an IP68 underwater junction to ease and fast the installation and possible maintenance of the light.
The light is totally IP68, certified, suitable for permanent immersion without using any resin, but at the same time entirely demountable and accessible in every part in case of need for maintenance.
Technical features
| Mizar 6 Mono | ||||||
| Code | LED6C | LED6N | LED6F | LED6R | LED6V | LED6B |
| Material | AISI 316L stainless steel | AISI 316L stainless steel | AISI 316L stainless steel | AISI 316L stainless steel | AISI 316L stainless steel | AISI 316L stainless steel |
| Power supply | 12 VDC | 12 VDC | 12 VDC | 12 VDC | 12 VDC | 12 VDC |
| Max power | 7 W | 7 W | 7 W | 7 W | 7 W | 7 W |
| Lamp | LED MR16 – GU5,3 | LED MR16 – GU5,3 | LED MR16 – GU5,3 | LED MR16 – GU5,3 | LED MR16 – GU5,3 | LED MR16 – GU5,3 |
| Colour | Warm white (3000°K) | Normal white (4500°K) | Cool white (5500°K) | Red | Green | Blue |
| Max luminous flux | 550 lm | 550 lm | 550 lm | 300 lm | 500 lm | 150 lm |
| Light beam | 38° | 38° | 38° | 38° | 38° | 38° |
| Cable | (H07RN-F) 2×1 mm2 – 10 m – Submersible | (H07RN-F) 2×1 mm2 – 10 m – Submersible | (H07RN-F) 2×1 mm2 – 10 m – Submersible | (H07RN-F) 2×1 mm2 – 10 m – Submersible | (H07RN-F) 2×1 mm2 – 10 m – Submersible | (H07RN-F) 2×1 mm2 – 10 m – Submersible |
| Protection level | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
