HD-100 Water Switch

HD-100 Water Switch for fountains

The HD-100 Water Switch is a switching device specifically designed to produce a rapid ON-OFF switching of fountain water jets.

Made of nickel-plated brass and stainless steel, 24 Vdc power supplied.

Suitable for permanent immersion with IP68 protection rate.

1” connections. Complete with standard 1,5 m 2 x 0.8 mm2 cable.

Upon request, supplied with IP68 PLUG&PLAY underwater connector.



Tips for use and applications

Compared to common systems, the HD-100 Water Switch allows to get a fast switching of the water jet without using mechanical components, prone to wear and tear and without using compressed air; the axial alignment of input and output allows to reduce space and misalignments.

Easy to install, also thanks to the IP68 PLUG&PLAY connector, upon request.

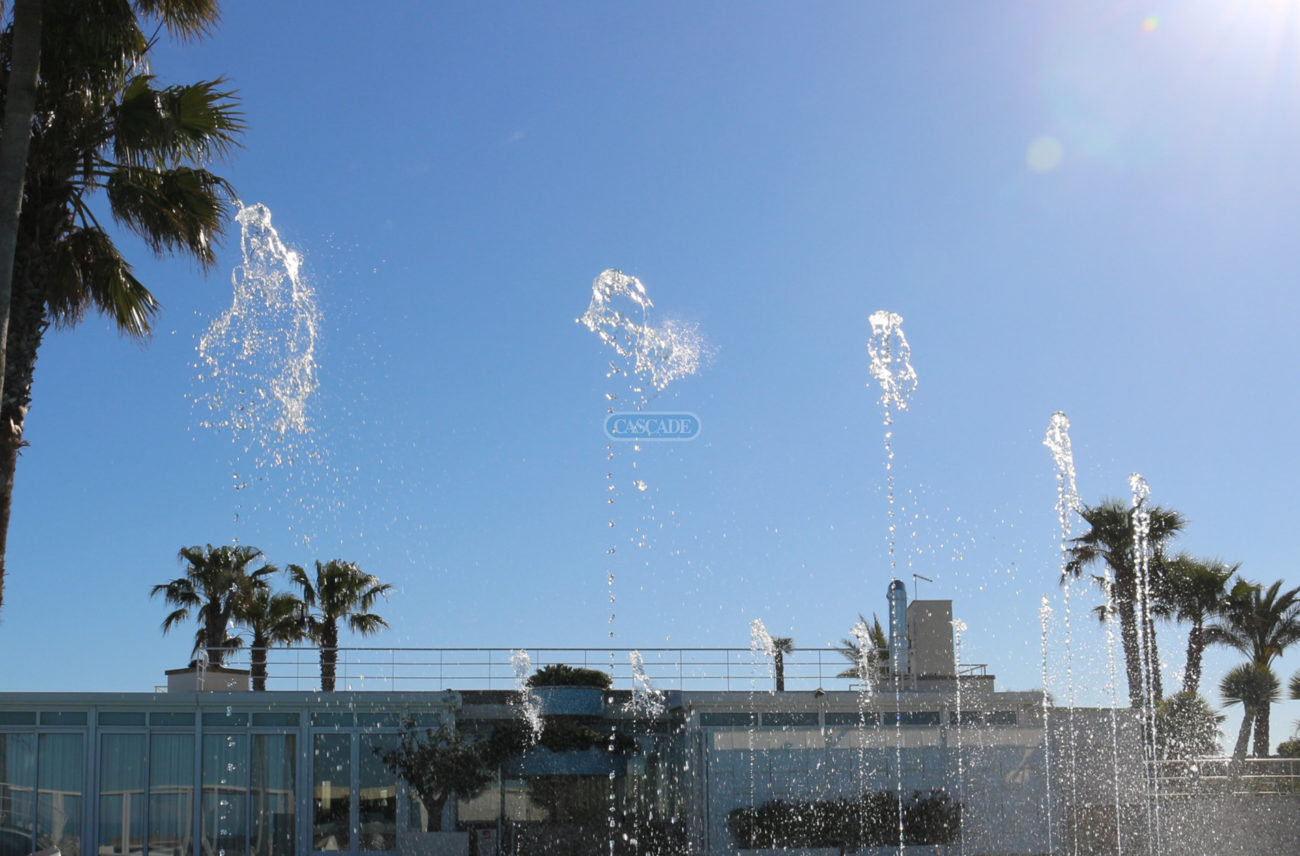

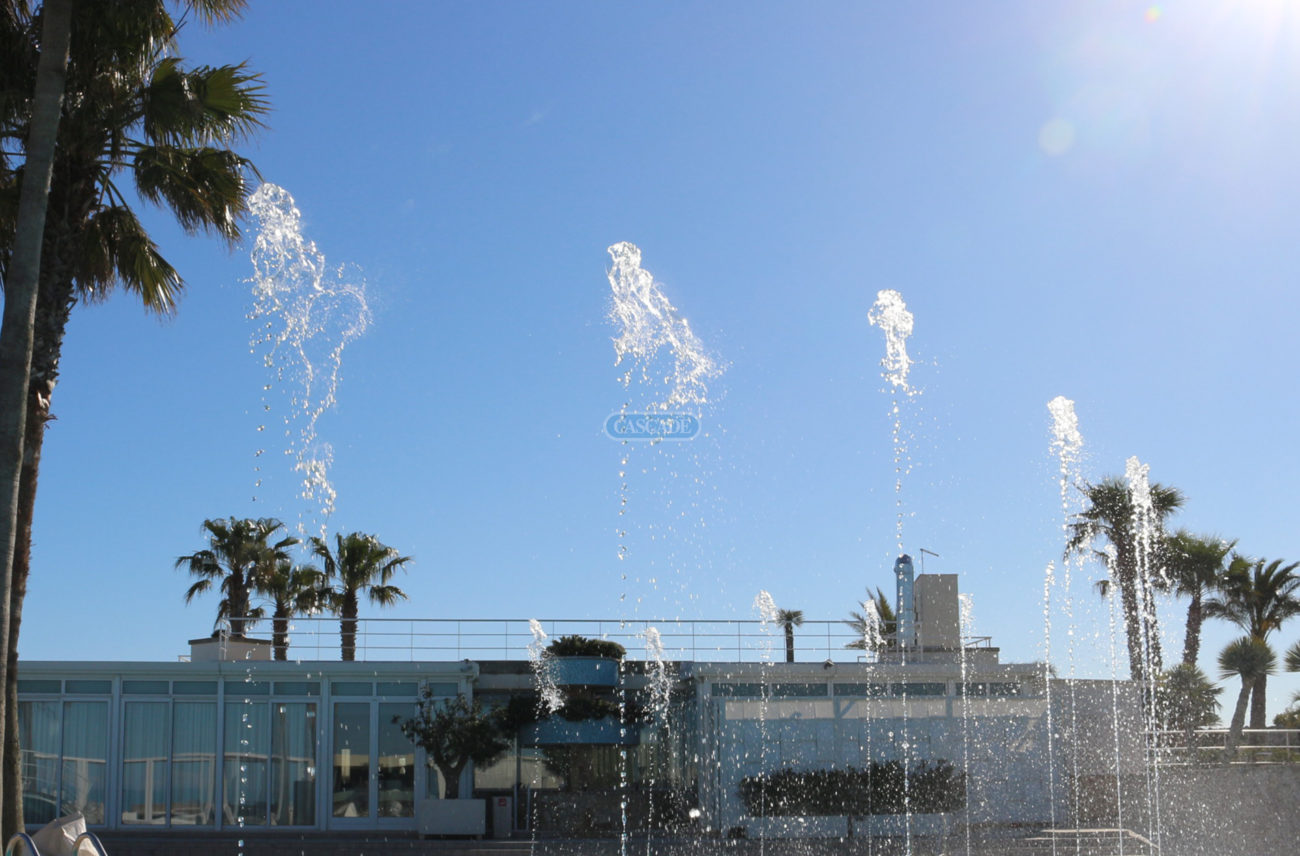

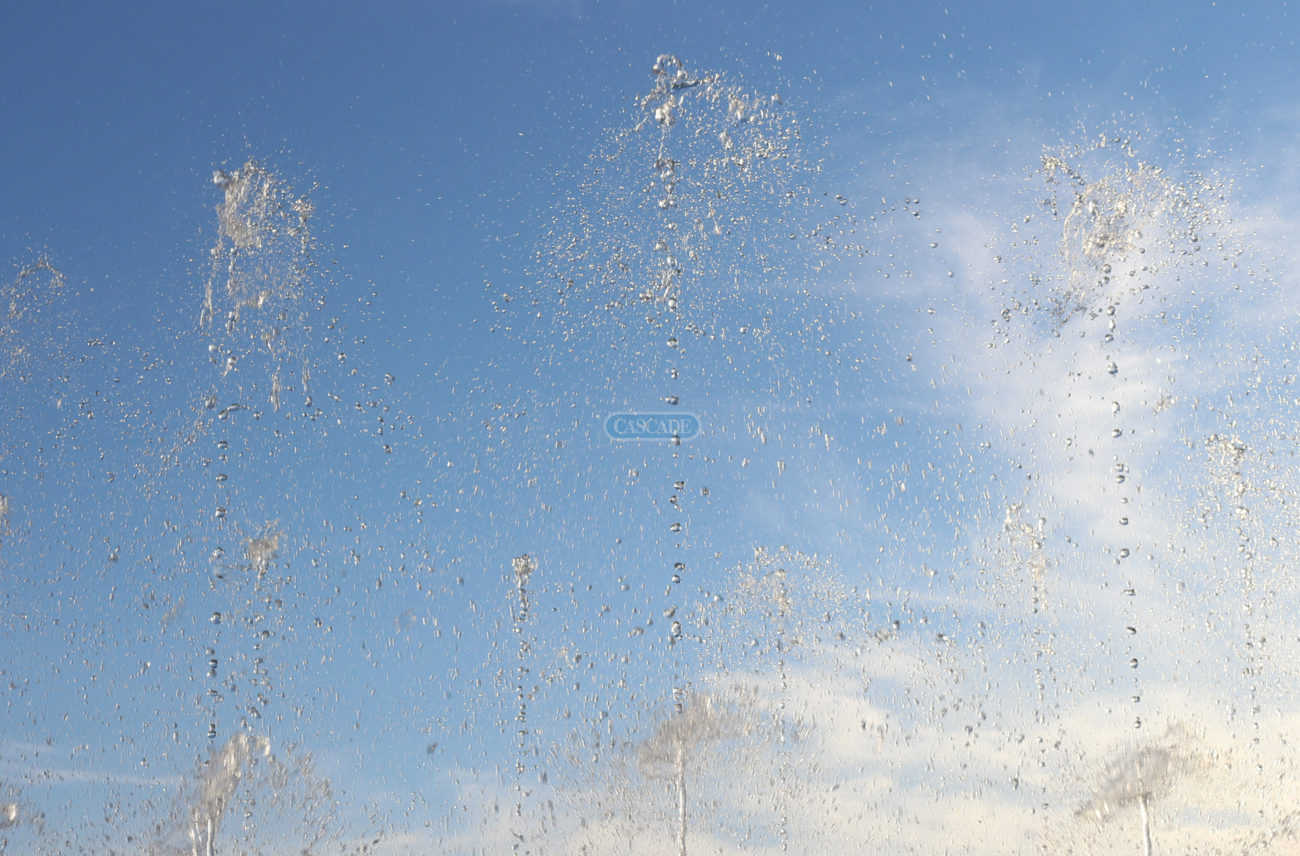

Especially suitable for playful fountains, in which the fast ON-OFF switching effect is prevalent compared to other traditional water effects.

Suitable to be used with low flow rates and limited heights (see the datasheet for further information).

It can be made compatible and controllable by DMX-RDM protocol by using the DMX-PWM4 Converter (see the FOUNTAIN CONTROL SYSTEMS section).



Technical features

 Water Switch HD-100
CodeHD100
Supply voltage24 VDC
Max absorbed power10 W – 400 mA
Minimum switching time0,2 s
Connections1”
Standard cable length1,5 m
Protection rateIP68
MaterialStainless steel and nickel-plated brass
Weight2 Kg
